Design diversity

A combination of shapes, colours, surfaces and layouts offers you an endless range of opportunities to express your individuality.

Clean type

You prefer simple shapes and plain colours? Then chose our classic rectangular units in white and grey. An upright arrangement of the heating panels at differing heights will serve to accentuate this wish for design exclusivity.

Conspicuous type

You love striking colours and unusual shapes? The combination of ring-shaped and circular gold HELIOLITH panels on a violet wall has a particularly charming appeal and underlines your personal tastes.

Additional Accessory – Towel Rail

Functional addition for HELIOLITH infrared heating panels.
Available in two versions – Base and Pro.

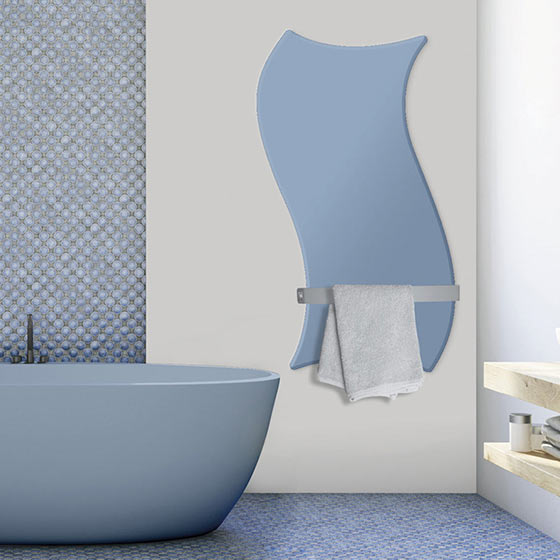

Towel Rail BASE

Do you value clean lines and refined, understated design?
The BASE towel rail is a seamless addition to your HELIOLITH infrared heating panel.
Its reduced, architectural form integrates effortlessly into a wide range of interior concepts, enhancing a calm and timeless design language.

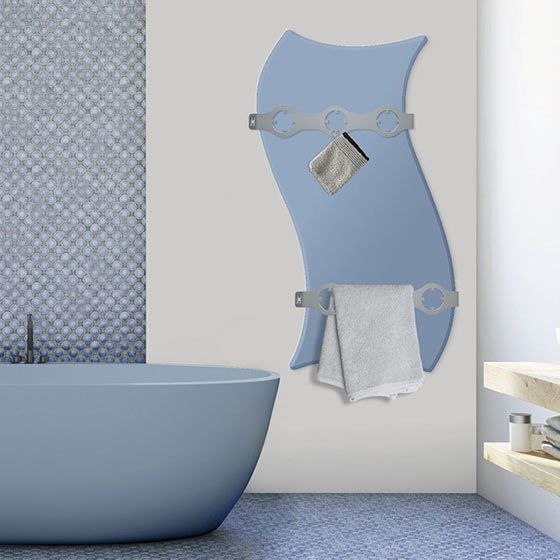

Towel Rail PRO

Do you seek enhanced functionality without compromising clarity?
The PRO towel rail offers additional hanging options for towels and textiles.
Its extended design combines flexibility and organisation, supporting a structured and refined interior concept.

Installation & Specifications

The towel rail can be mounted on all HELIOLITH infrared heating panels using the standard adapter bracket – horizontally or vertically (up to 2 units).
Installation is possible on the left or right side and can be flexibly positioned.*

* Up to 4 towel rails can be installed on the HELIOLITH WELLE H46 infrared heating panel, including placement in the upper and lower thirds of the panel.

Material & Finish:
Bead-blasted stainless steel – silver-grey

Recommendation:
BASE and PRO can be combined and complement each other in both function and application.

Variety of Forms

Angular, curved, or playful – which form reflects your style?

HELIOLITH Technical Specifications

Panel thickness
28 mm

Mounting depth
55 mm

Voltage
230 V

Basic room coverage
70 W/m² at an U-value of 0,40 W/(m²*K)

Installation depth
W x H [mm] / weight [kg] / output [W] / room-coverage [m²]

Rectangle

Small H21-RE
On request

Medium H32-RE
719 x 409 mm / 15 kg / 620 W / 8,9 m²

Large H40-RE
895 x 508 mm / 23 kg / 970 W / 13,9 m²

X-Large H46-REunavailable

Standard colours

RAL 7016 / 9010

Square

Small H21-QU
Unavailable

Medium H32-QU
541 x 541 mm / 15 kg / 620 W / 8,9 m²

Large H40-QU
675 x 675 mm / 23 kg / 970 W / 13,9 m²

X-Large H46-QU
unavailable

Standard colours

RAL 7016 / 9010

Ronde

Small H21-RD
Unavailable

Medium H32-RD
611 x 611 mm / 15 kg / 620 W / 8,9 m²

Large H40-RD
760 x 760 mm / 23 kg / 970 W / 13,9 m²

X-Large H46-RD
Unavailable

Standard colours

RAL 7016 / 9010

Oval

Small H21-OV
Standard colours

Medium H32-OV
800 x 454 mm / 15 kg / 620 W / 8,9 m²

Large H40-OV
1000 x 580 mm / 23 kg / 970 W / 13,9 m²

X-Large
Unavailable

Standard colours

RAL 7016 / 9010

Ring

Small
Unavailable

Medium
Unavailable

Large H40-RI
800 x 800 mm / 23 kg / 970 W / 13,9 m²

X-Large
Unavailable

Standard colours

RAL 8000

Heart

Small
Unavailable

Medium H32-HE
600 x 511 mm / 15 kg / 620 W / 8,9 m²

Large H40-HE
831 x 767 mm / 23 kg / 970 W / 13,9 m²

X-Large
Unavailable

Standard colours

RAL 4003 / 3020

Flower

Small
Unavailable

Medium H32-FL
658 x 658 mm / 17 kg / 620 W / 8,9 m²

Large
Unavailable

X-Large
Unavailable

Standard colours

RAL 4003

Star

Small
Unavailable

Medium H32-ST
929 x 929 mm / 17 kg / 620 W / 8,9 m²

Large
Unavailable

X-Large
Unavailable

Standard colours

RAL 1018

Horse

Small
Unavailable

Medium
Unavailable

Large H40-HH
876 x 985 mm / 23 kg / 970 W / 13,9 m²

X-Large
Unavailable

Standard colours

RAL 7016

Wave

Small
Unavailable

Medium
Unavailable

Large
Unavailable

X-Large H46-WV
1.185 x 680 mm / 34 kg / 1.280 W / 18,3 m²

Standard colours

pergamon / RAL 5014 /5024

Cloud

Small
Unavailable

Medium H32-CL
885 x 445 mm / 17 kg / 620 W / 8,9 m²

Large
on Request

X-Large
On request

Standard colours

pergamon / RAL 5024

Individual shapes

Small
On Request

Medium
On Request

Large
On Request

X-Large
On Request

Colour variety

Whether bright, pastel, or monochrome, you choose the colour of your heating panel.

This is a selection of our standard designs, but for complete design freedom, you can actually paint your HELIOLITH according to your own ideas!

RAL 7016anthracite

RAL 7047light grey

RAL 9010white

pergamon

RAL 1001creme

RAL 8000brown

RAL 6021pale green

RAL 5014dove blue

RAL 5024pastel blue

RAL 1018yellow

RAL 4003pink

RAL 3020red

RAL 6021soft green

RAL 5014dove blue

RAL 5024pastel blue

RAL 1018yellow

RAL 4003pink

RAL 3020red

Colour wish

Printed motifs and patterns

UV direct printing and 3D water transfer technology for a vast range of surface diversity!UV direct printing and 3D water transfer technology for a vast range of surface diversity!

Wide variety of surfaces thanks to UV direct printing and 3D water transfer technology.

You pick out the colour of your wall panel from a huge selection of standard designs. Moreover, direct UV and 3D water transfer printing mean that absolute freedom and individual choice are available with regard to design, and it is also possible to print over the panel edges.
